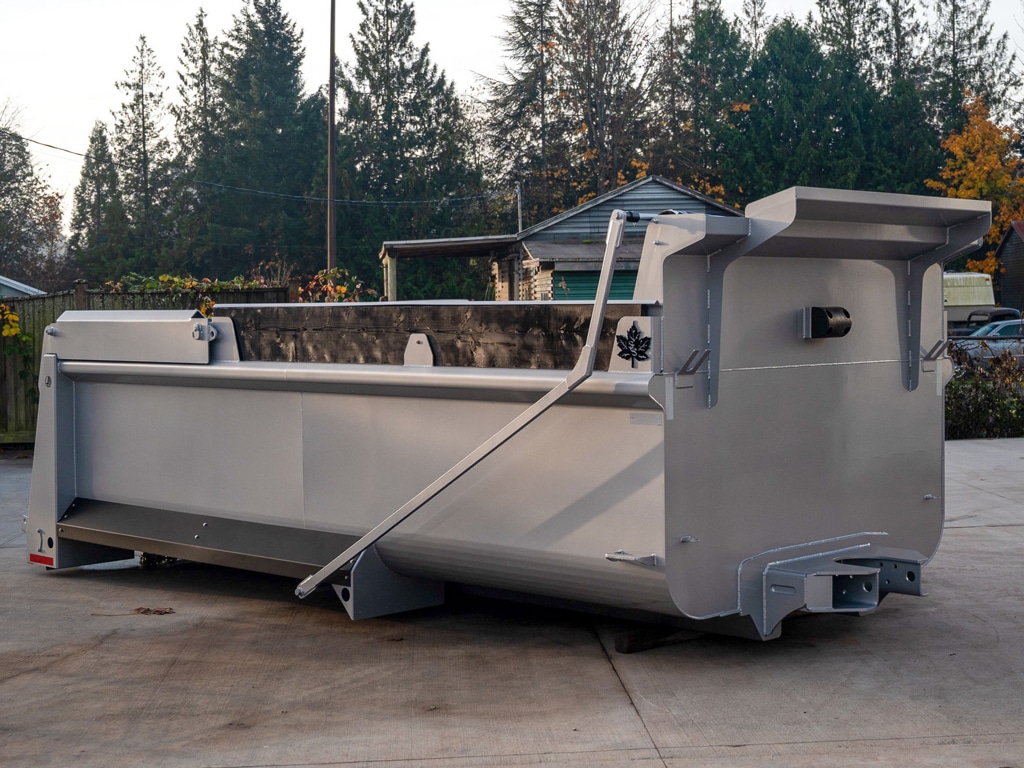

Tub Style Gravel Body

The Tub Style Gravel Body is SCS’s premium stationary solution for heavy-duty aggregate and soil handling applications. Featuring a robust tub-style design with large radius formed walls, this gravel body is engineered for excellent durability and superior material clearing. The Tub Style Gravel Body is constructed with Hardox 500tuf materials throughout and includes a bottom-mounted telescoping cylinder for improved stability. Available in 16 to 20 foot lengths with capacities ranging from 12 to 15 cubic meters, this gravel body comes standard with a 36″ hydraulic high lift gate and integrated air tarp system.

Fixed dump body unit with a bottom-mounted telescoping hoist for enhanced stability and performance.

Category: Dump Bodies Tags: Mining, Construction, Oil & Gas, Landscaping

Industry Leading Warranty

3–year Parts and Labour Warranty

Unlimited Customization

An SCS bin can be customized to suit your exact needs.

Increase Your Productivity

SCS quality ensures a longer product life-cycle and eliminates unnecessary downtime.

Stock SizesNeed A Specific Size? Contact Us For A Quote

FGB-16

16'

Foot Length

Get A Quote

FGB-20

20'

Foot Length

Get A Quote

With an industry leading warranty, scs gravel boxes are built to last!

Standard FeaturesDo You Need A Unique Feature? Tell Us What You Need

Sideboards

Removable fir boards are provided to increase capacity, allowing for flexible adjustment based on load requirements.

Longsills

Fabricated full-length structural members, fully welded to the floor and front bulkhead.

CWB Certified Welding

Our CWB certification guarantees exceptional weld quality. This helps contribute to the overall life-cycle of our products.

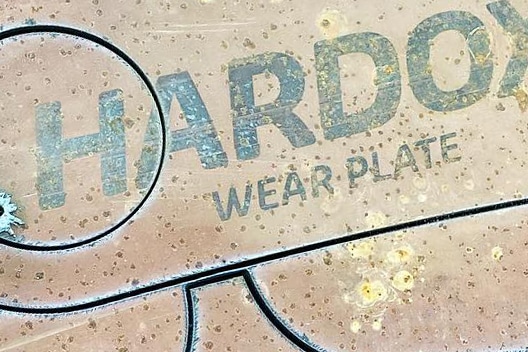

Hardox Steel

The use of Hardox steel provides exceptional strength and durability while minimizing weight.

Do you need another type of modification?Contact Us For A Quote

Product Specifications

¼” formed steel longsill
¼” Hardox 500tuf floor sheet
3/16” Hardox 500tuf round bottom walls
3/16” Hardox 500tuf front and door skin
Standard 36” hydraulic highlift gate with air actuate gate release and spreader chains
Tailgate- formed double wall
¼” reinforced formed rear posts with lights

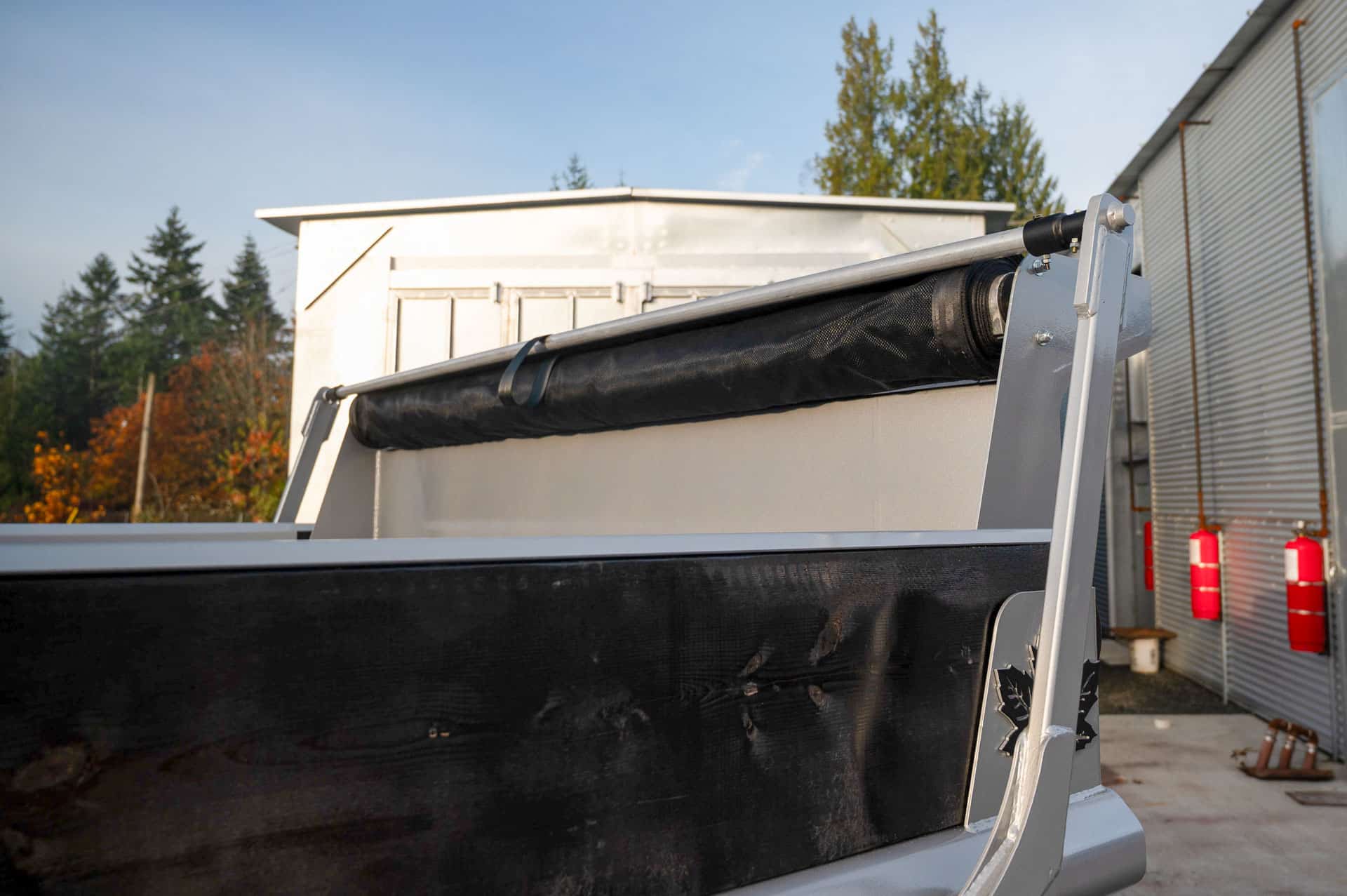

Air tarp
Aluminum powder coated fenders
Side boards, 2″ x 10″ fir
Steel side board caps
Shovel holders
Welding – Inner and outer floor seams, front and rear wall seams and inside top rail seams are continuous welds
Painting – Two coats of epoxy primer on all exterior surfaces – Two coats of poly urethane top coat in any single colour
