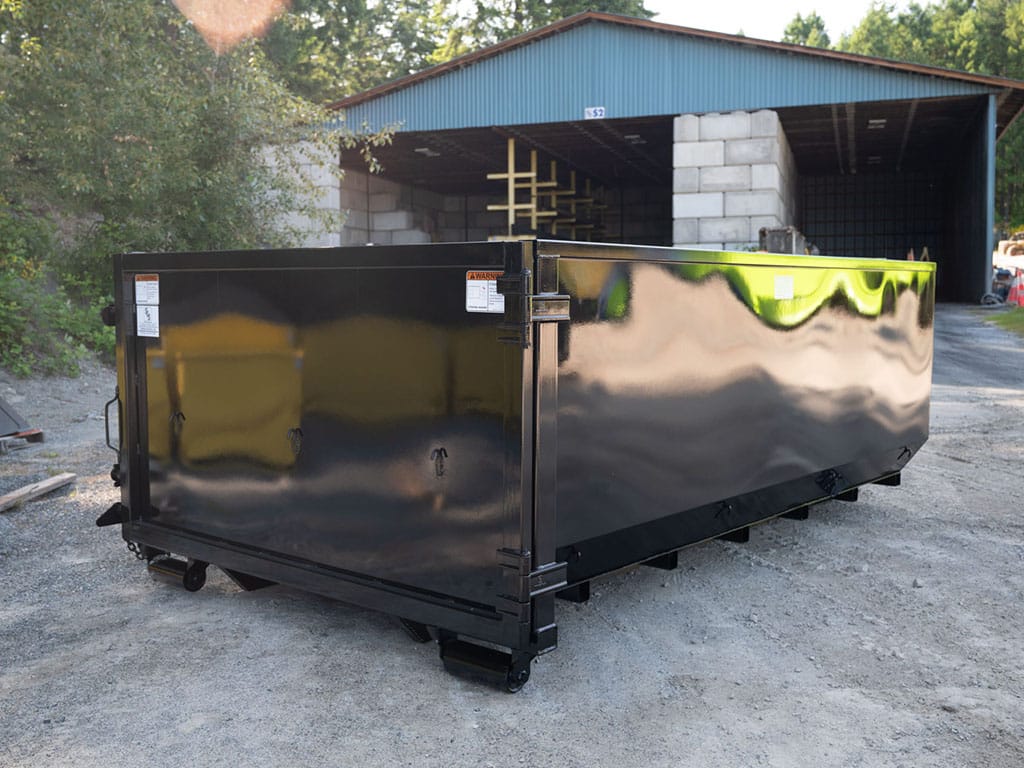

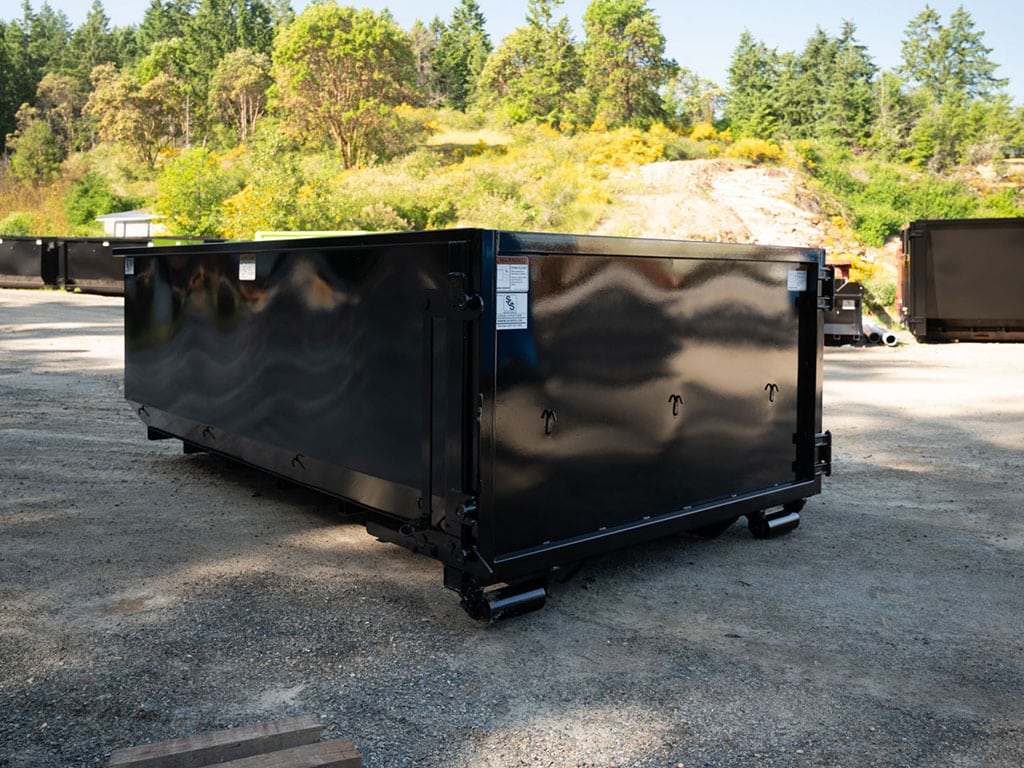

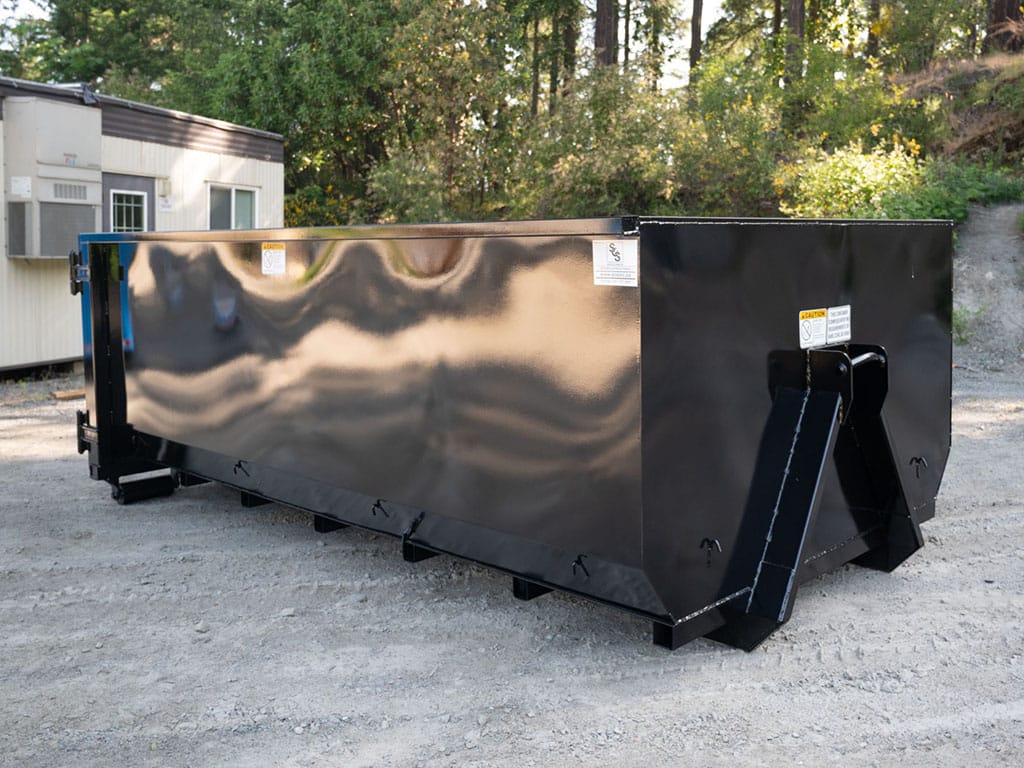

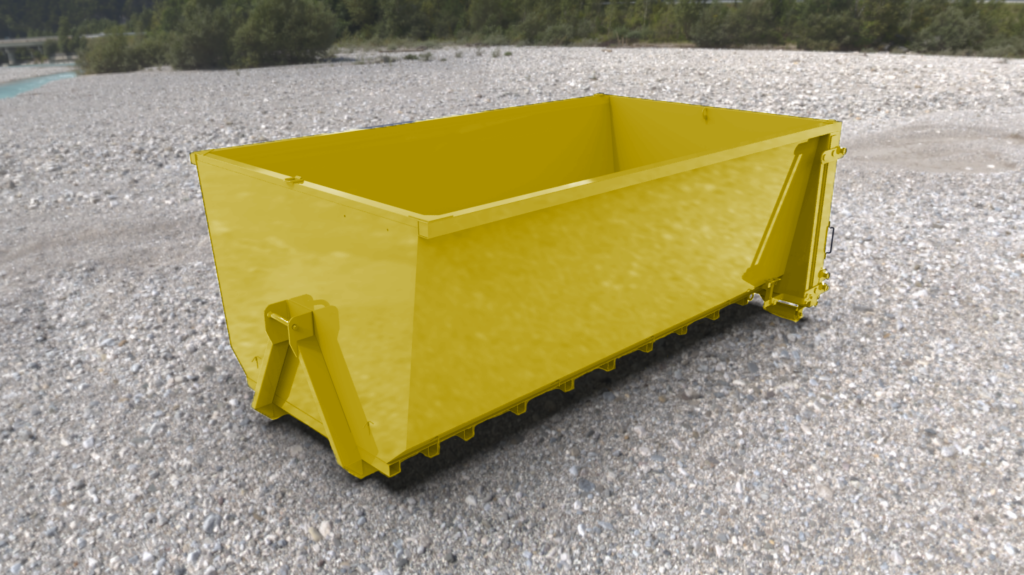

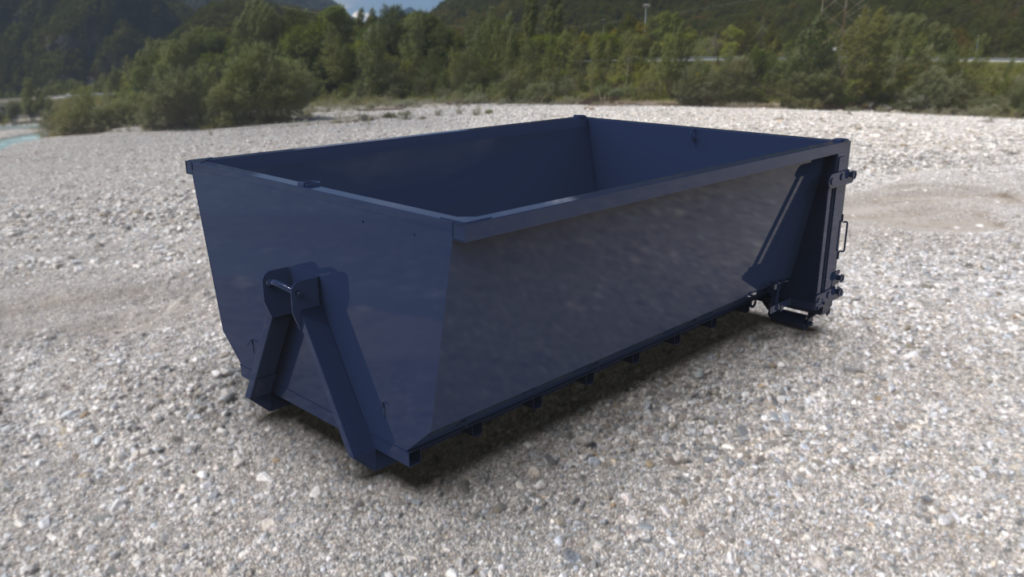

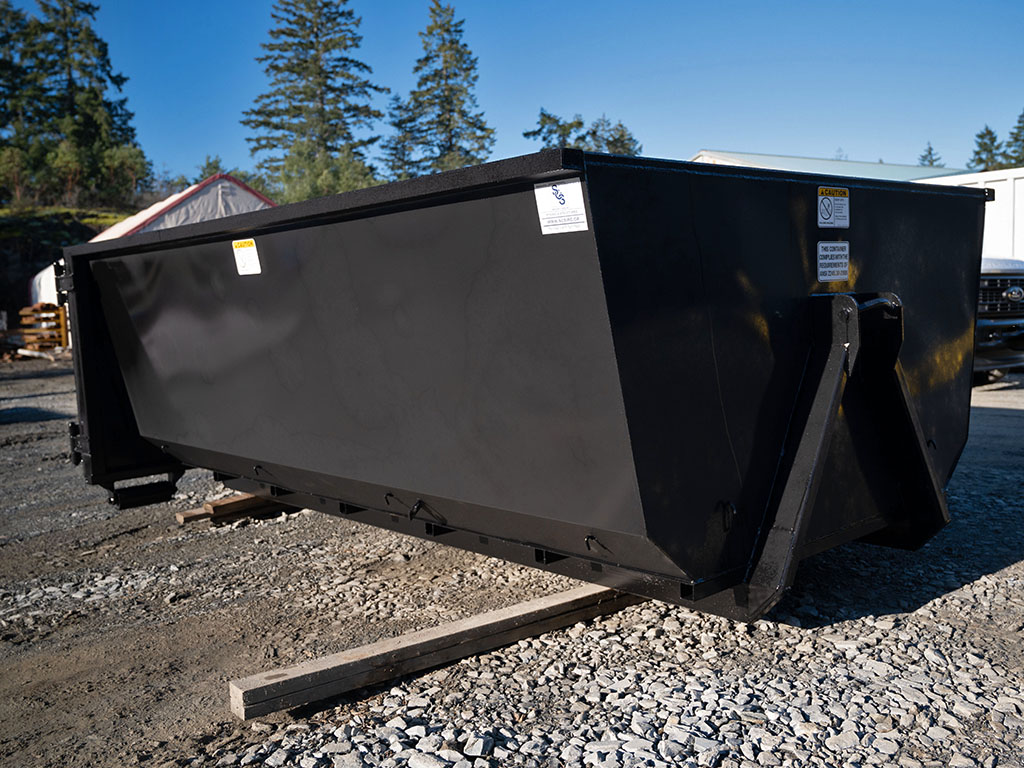

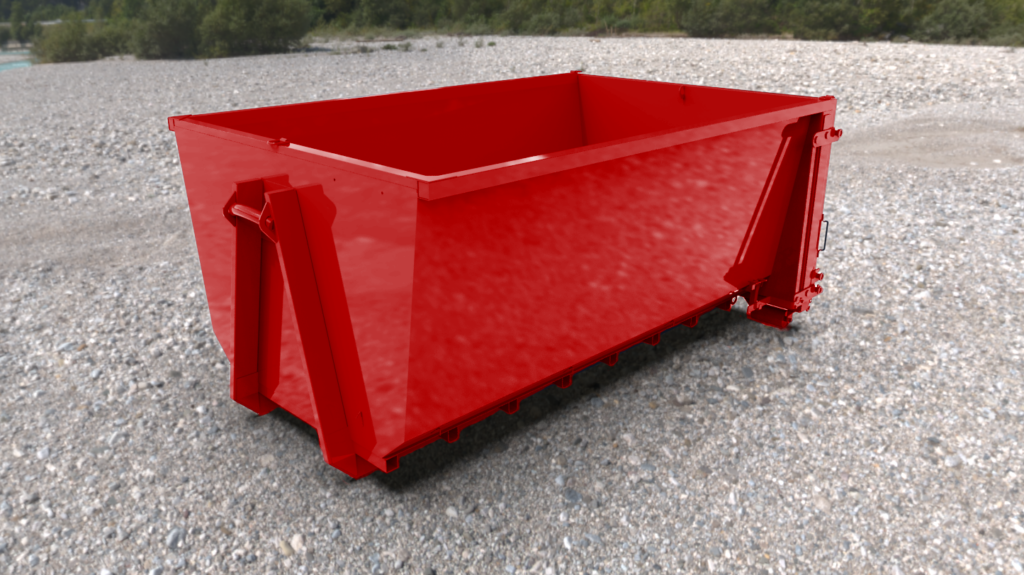

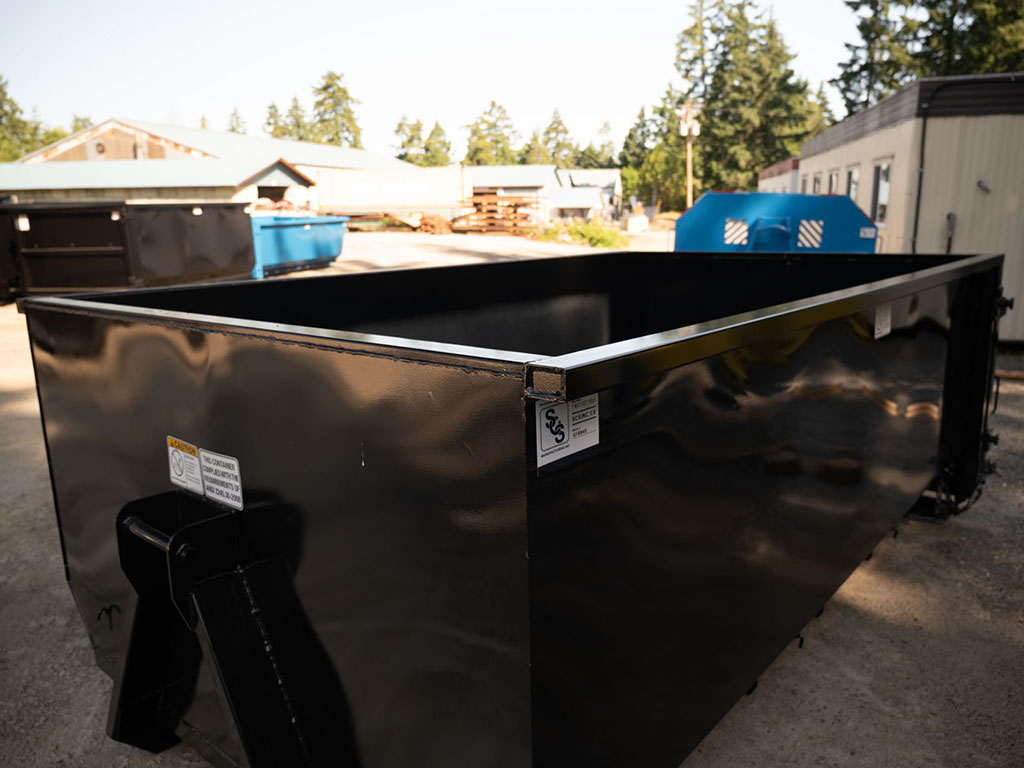

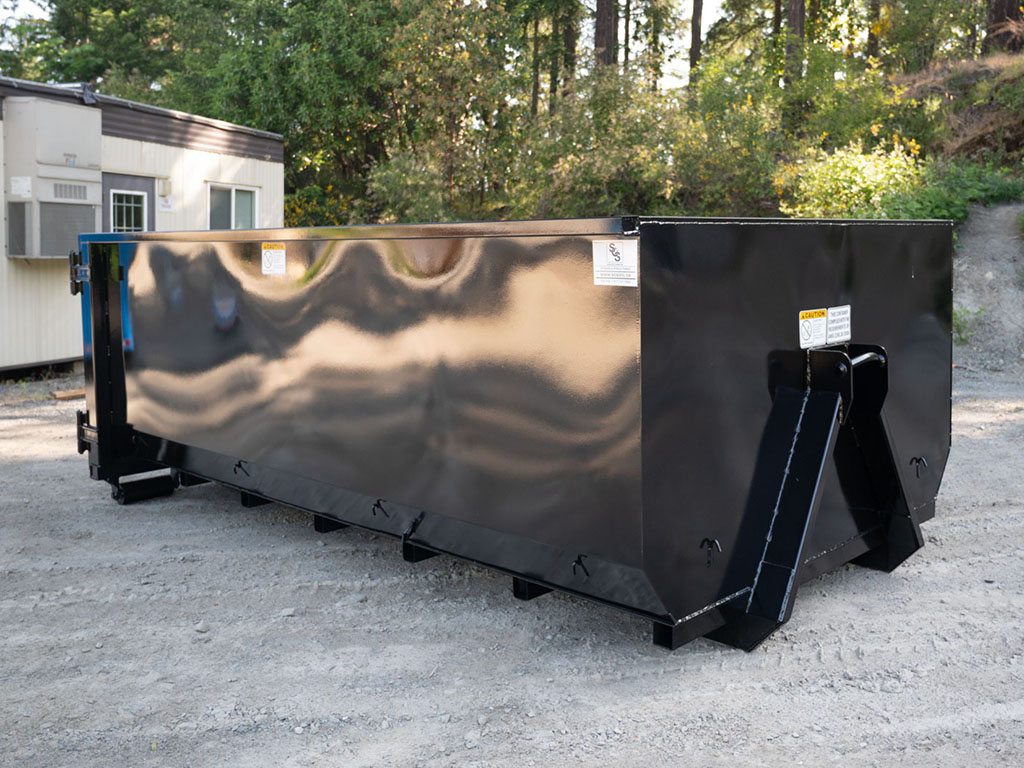

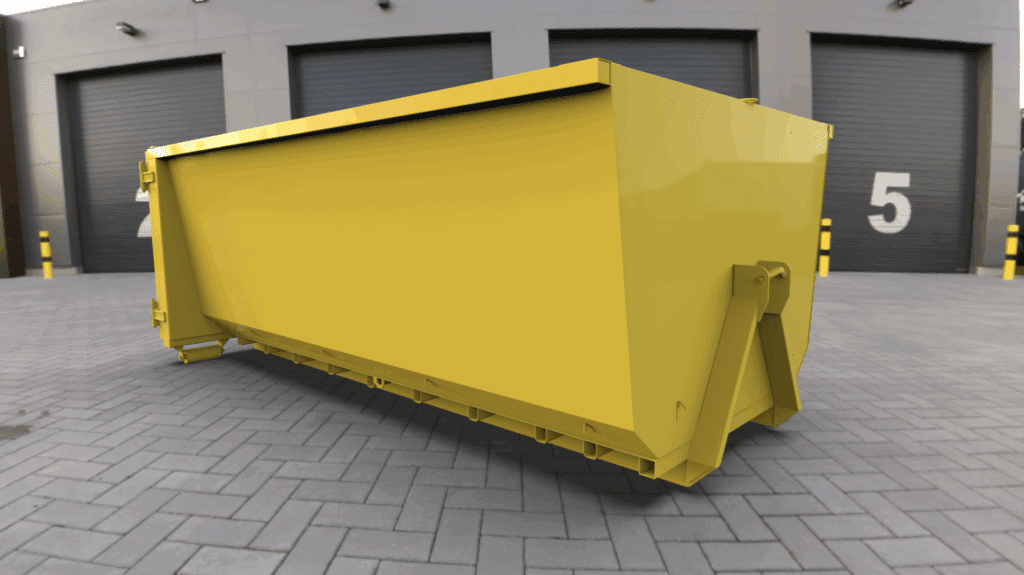

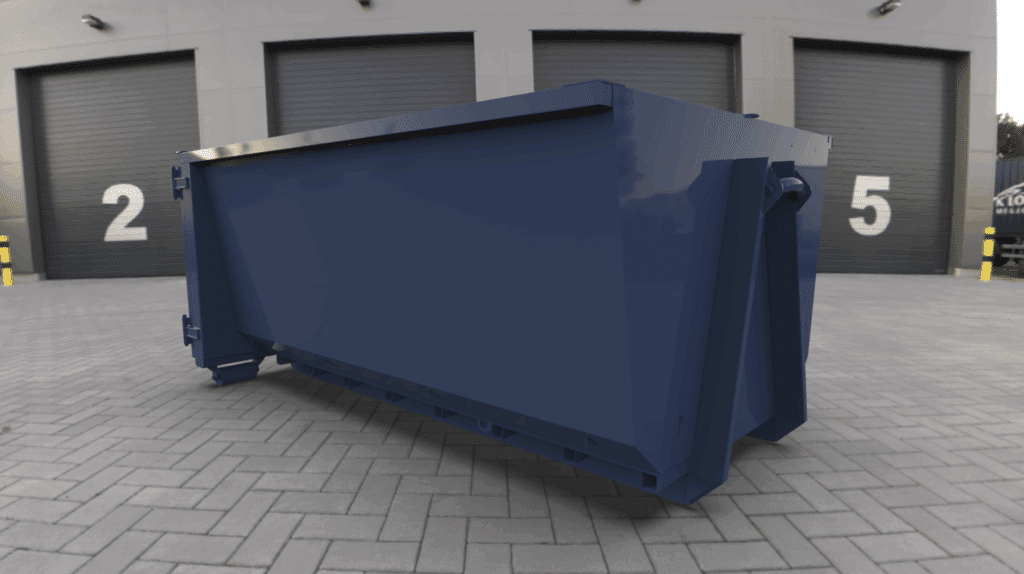

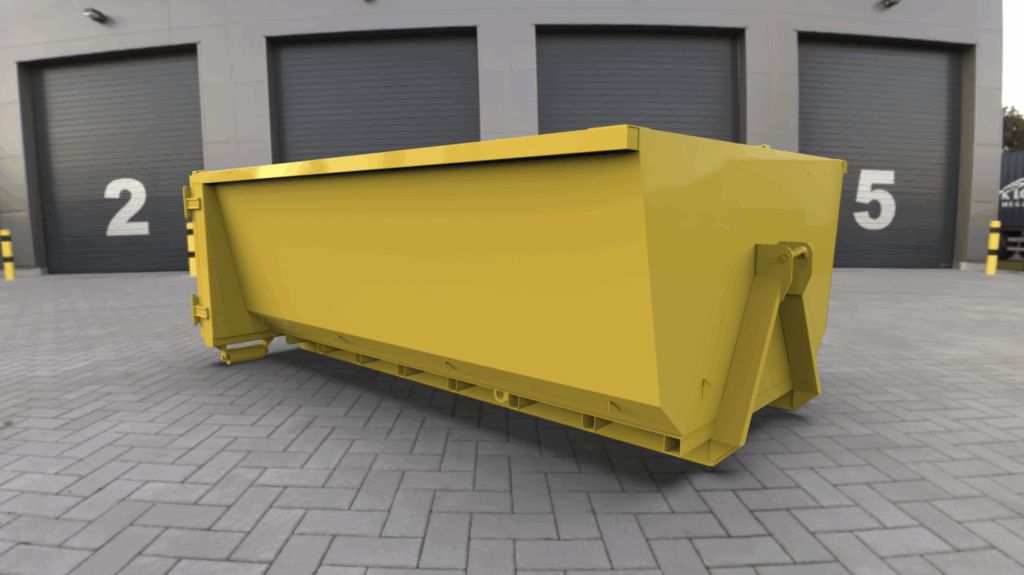

Mini Tub Roll Off Container

Product Specifications

• Available in 6 – 24 cubic yard sizes
• Available in 10′ – 16′ lengths
• 3 – year parts and labour warranty
• Hook lift Main rails 5” x 2” x 3/16” steel tube
• Cable pull Main rails 5” x 2” x 3/16” steel tube
• Cross members 3” x 3” x .120” formed Hi-tensile channel on 18” centers
• Door frame 4″ x 3″ x .120″ Hi-tensile channel
• Walls, door and front sheets, 12ga hot rolled sheet
• Floor 10 GA hot rolled sheet, formed
• Rear post – formed 3/16″ HR plate
• Front rail 3” x 3” x 1/8” steel tube. 4” x 3” x .125” steel tube on containers over 14’ long
• Side rails 3” x 3” x 1/8” steel tube. 4” x 3” x .125” steel tube on containers over 14’ long
• Landing gear (wheel mount) 6” x 3” x 3/16” Hi-tensile formed channel
• Hinges – Heavy duty dropped forged with grease fitting

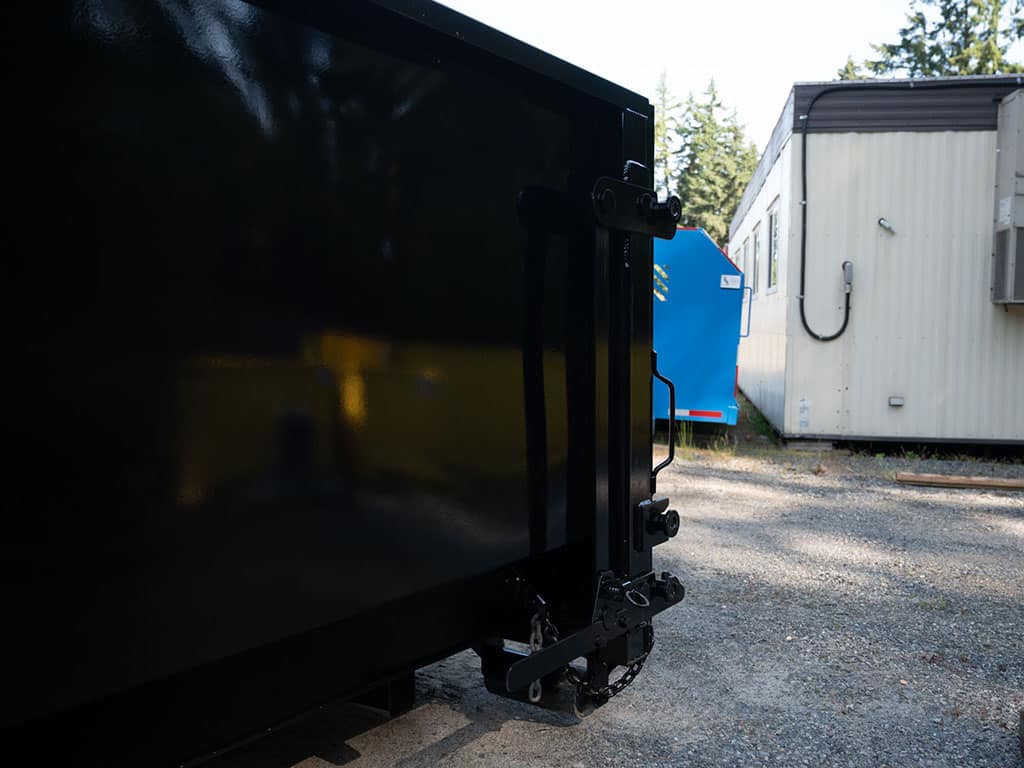

• ANSI 245.30-2008 Compliant Latch Options – Carnegie Latch or Turn Buckle Ratchet Latch

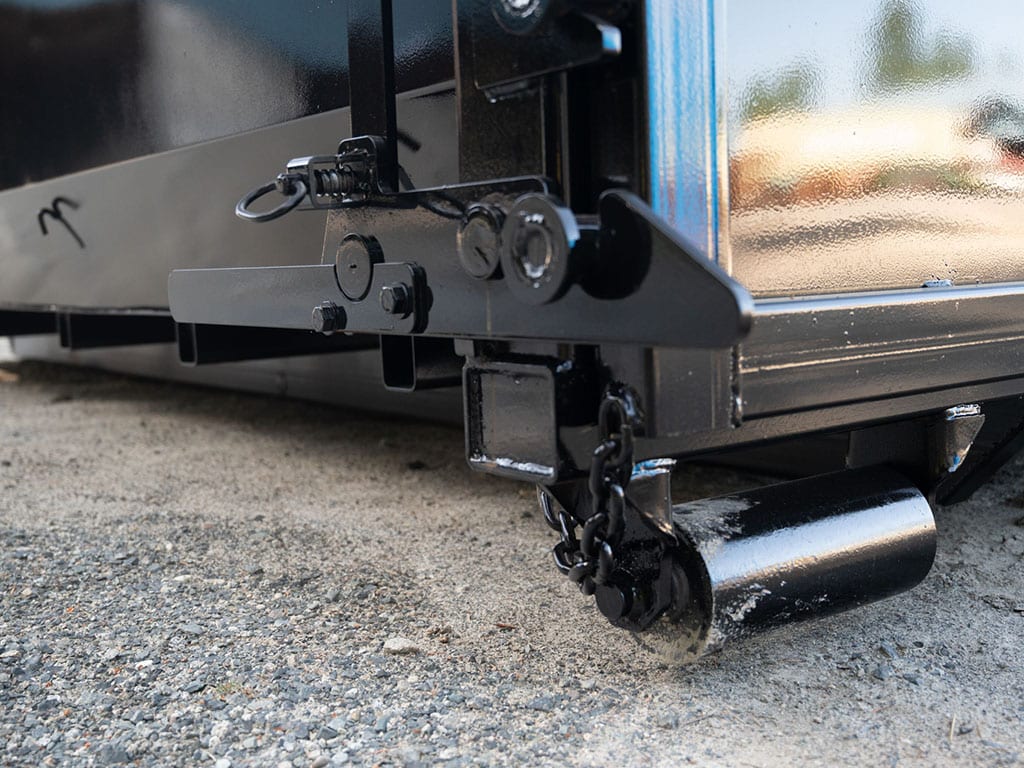

• Wheels – 5” standard pipe with 1-1/4” extra heavy pipe hubs and 1-3/16” cold rolled shaft All wheels have full length hubs for axle support and mount to the landing gear cross member with 3/8” formed steel plate
• Welding – Inner floor seams, front and rear wall seams and inside top rail seams are continuous welds
• Two coats of anticorrosive primer on all exterior surfaces
• Two coats of industrial enamel paint in any single colour
